AQUILA V1
Scratch / Self built
🔧 Building🔧 Scratch built
AQUILA V1 is a scratch-built experimental water rocket using a multi-bottle PET pressure vessel. It features a custom 3D-printed fin can, three 5 mm XPS fins, interchangeable nozzle diameters, an electronic parachute deployment system using a Mercury V1 altimeter, and a 70 cm parachute. Designed primarily for altitude testing and iterative aerodynamic development.
Historique des vols
Aucun vol enregistré
Spécifications physiques
Diamètre
88.00 mm
Longueur
1320.00 mm
Poids à vide
450.00 g, no motor
Ailerons
3 SELITAC 5 mm (XPS foam)
Matériau du corps
PET Bottle
Moteur & récupération
Étages
1
Récupération
Parachute
Taille du parachute
70.0 cm
MOTOR MOUNTS
Custom
Données aérodynamiques
Cx de traînée
—
Surface de référence
0.005970 m²
CP
—
CG
—
Notes de construction
Custom PET multi-bottle pressure vessel with 35 mm bonded overlap joints. Main body diameter 87.2 mm. Reinforced 3D-printed fin can with three removable XPS fins and dual locking pins. Interchangeable 7.0; 7.5; 8.0; 8.5; 9.0; 9.5; 10.0 mm water nozzles. Custom 3D-printed nose section containing Mercury V1 flight electronics, LiPo battery and linear-servo parachute release. Pressure vessel undergoing hydrostatic validation before flight.
Comments & reactions
Neil
13-Sep-2026 à 00:47
That looks amazing!
Haiirone
17-Sep-2026 à 19:13

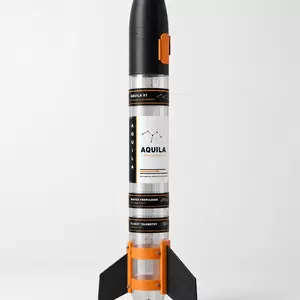

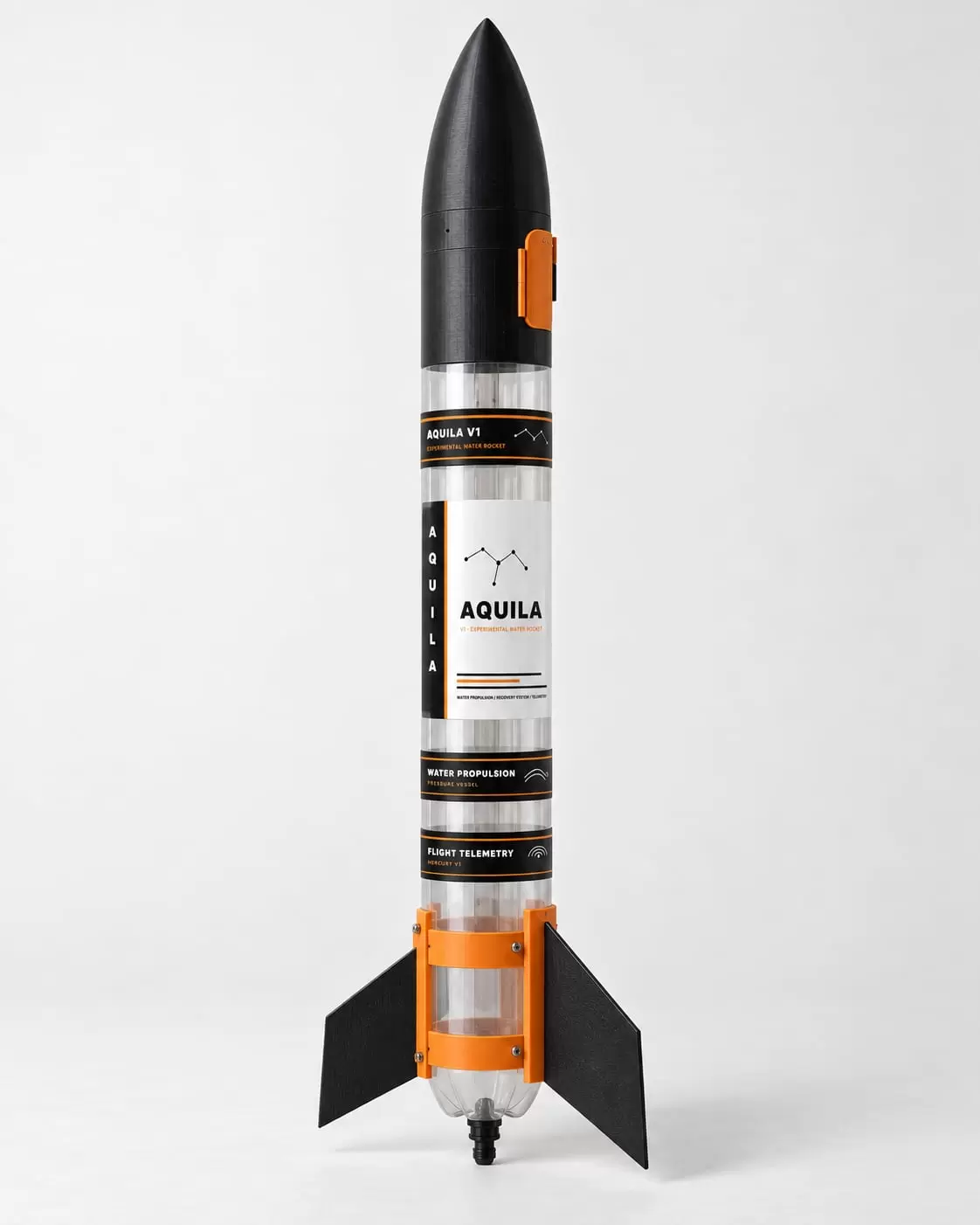

Thanks! This image was generated with AI, but the real rocket should look very close to this overall. The general shape, proportions and design are already pretty much what weâre building.
