Flight summary

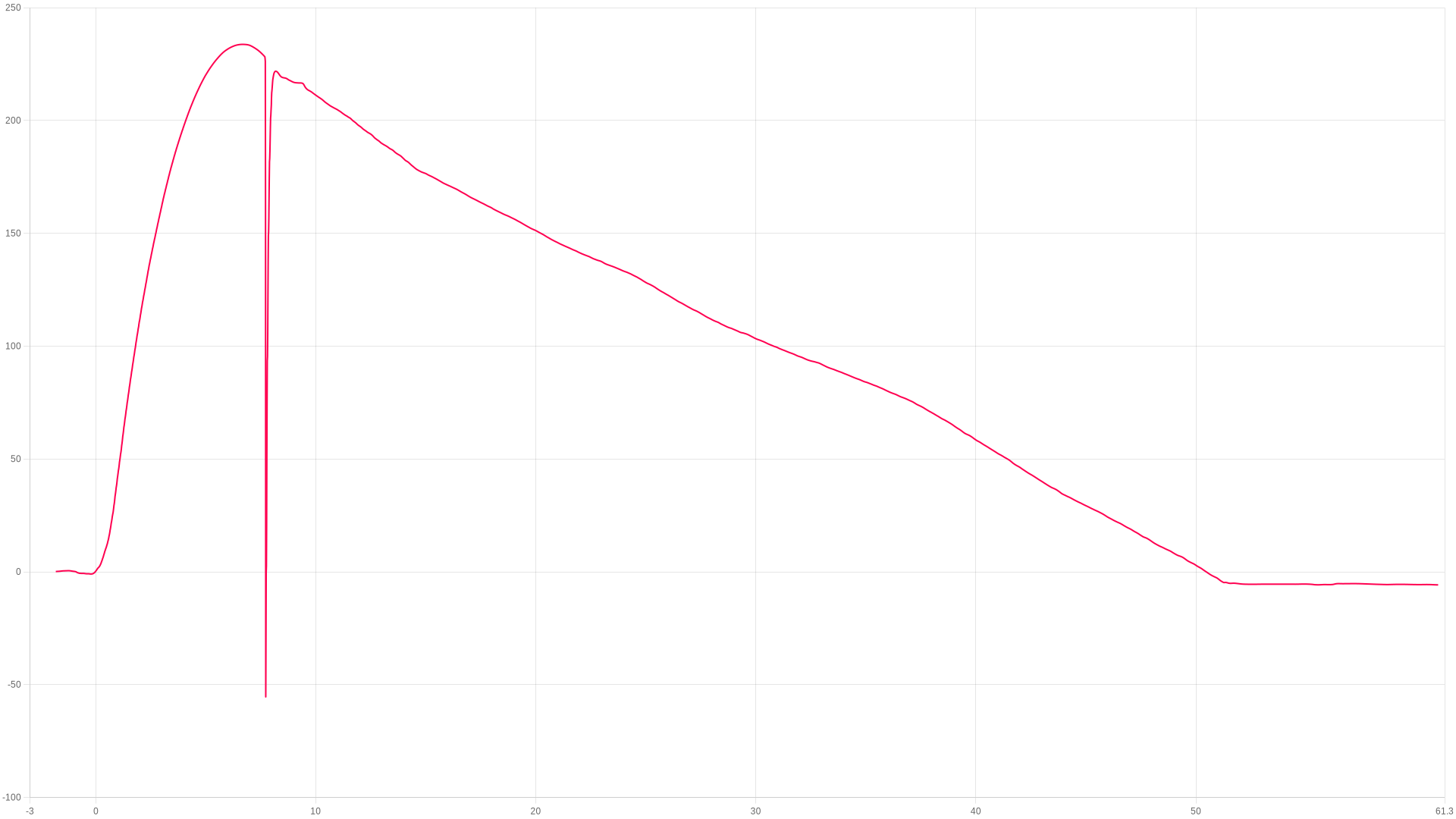

Altitude

Apogee

233.75 Meters

Time to apogee

6.68 seconds

Burnout altitude

50.57 m

Max velocity altitude

148.94 m

Ejection altitude

226.21 m

Landing altitude

-5.33 m

Stability

Stability score

32.5 / 100 (Fair)

Stability breakdown

Tilt at burnout (20%)52.2

Tilt consistency (15%)55.6

Pitch/yaw rate (30%)0

Damping (20%)12.5

Thrust straightness (15%)74.7

Velocity

Max ascent

1047.76 m/s

Max descent

-1172.2 m/s

At burnout

74.660 m/s

Landing velocity

-5.291 m/s

Descent velocity

-5.641 m/s

Ejection velocity

-553.05 m/s

Recovery

Single deploy (no dual deploy detected)

Acceleration

Max ascent

13.31 G

Max descent

21.14 G

Max during burn

13.31 G

Average ascent

-0.08 G

Average burn

7.14 G

Times

Burnout (first)

1.11 seconds

Apogee

6.68 seconds

Possible ejection

7.712 seconds

Landing

52.01 seconds

Output #1 ON

0 seconds

Output #1 OFF

0 seconds

Angles

Launch pad tilt

19.90°

Max tilt to burnout

29.95°

Launch roll

-18.22°

Launch pitch

-8.11°

Max spin (burn)

453.98 dps

Avg spin (burn)

243.65 dps

General

Upload date

26-Mar at 18:18

Data samples

3334

Total recording time

62.800 s

Average samples/s

53

Number of lockouts

0

Recording altitude

206.31 m

Launch after startup

40m 34s

Reference axis

X

Battery & temperature

Battery start

66%

Battery end

60%

Temperature start

9.65°C

Temperature end

9.2°C

MT1 launch temp

0°C

Output rules

No rules configured

Flight data animation

FLIGHT 1399

233.75 Meters

ALTITUDE

0.00m

VELOCITY

0.00m/s

ACCEL

0.00G

TILT

0.00°

PITCH

0.00°

ROLL

0.00°

YAW

0.00°

TIME

0.00s

AWAITING LAUNCH

ALT

altimetercloud.com

LAUNCH T+0.00s LANDING

Note: Flight profile animation requires your altimeter to be mounted in a fixed orientation that you choose in your settings. For best results please calibrate your sensors as well.

User notes

Add this device to your account to edit

Youtube video

No video added

Add this device to your account to edit

Flight images (0)

No images added

Linked rocket

No rocket linked to this flight

Device information

Mercury V1

This flight was flown on a Mercury V1.

Hardware version

Rev 3

Software version

2.3

Last online

26-Mar at 18:19

Accelerometer

32G 3-axis

Gyroscope

2000 dgps 3-axis

Pressure sensor

Bosch BMP 581

Magnetometer

N/A

Flight motors

No motors have been added to this flight

Add this device to your account to edit

Launch site, date & time

Click the map to place a marker · Drag to adjust

Lat— Lng—

✓ Launch location saved successfully.

✗ Could not save location — please try again.

Output rules

Rules allow the Mercury to take actions based on flight conditions. Each rule has up to 4 conditions (A-D) that must be met before the action triggers.

No rules configured

Motor match (BETA)

Very much in testing mode! We are working out how to guess which motor a flight flew on.

Brand

Motor

Score

Shape

Burn

Contrail

G300

33

72.6%

71.3%

Estes

1/4A3T

12

-7.9%

50.4%

Motor burn

This is the accelerometer output magnitude for the period from launch to burnout. You can check this against your motors thrust data on thrustcurve.org.

General flight settings

This is a snapshot of the settings that were used for this flight. pop over to the pop over to the My devices page and then Configure settings on the device..

Forecast pressure

i

Set this to your local forecast pressure at sea level. This will offer you slightly improved accuracty for your flight, although it's not 100% essential every little helps!

Xcweather.co.uk is a decent place to grab pressures from for your location and time.

1013.2 mbar

Launch detect

i

This is the altitude above the launch pad altitude where the altimeter will trigger itself into recording / flight mode.

The altimeter keeps a constant average of the pressure while waiting for launch, it uses a simple algorithm and the pre-flight buffers to do this. The most recent 120 samples (~4 seconds) are ignored so your pre-trigger altitude won't effect the ground baseline.

For almost all uses we suggest keeping this on the 25 Meter (~82 feet) default settings. If you want to test your altimeter by throwing it in the air, or are planning a very low flight you may want to lower the setting.

25 meters

Sample ratio

i

The altimeter runs at 50Hz however you can record every sample or every X samples in order to extend the log time. For example if you set the ratio to 1 it will save 1:1 samples, or if you set it to 3 it will save 1 in 3 samples.

1:

Max samples

i

This is the maximum samples the altimeter will log per flight. When it reaches this amount it will stop and save the recording.

12000

Recording stop

i

This setting is how the altimeter decides to stop recording. You can choose either 300 or 600 samples stable or it will record until it's 10000 sample limit unless you press the BUTTON in Manual stop mode.

The samples stable method waits for the devices altitude not to change for the set number of samples. This is defined by not changing by more than +/- 1.0 meters for 98% of the samples, it's a reliable method to stop the recording after landing within 8-10 seconds (300 sample) or 16-20 seconds (600 sample).

Auto: 300 samples stable

Oversampling

i

Oversampling is a internal setting of the BMP 390 pressure sensor. It is how many samples are taken for each reading. By taking multiple samples for each pressure reading the altimeter reduces noise and increases the resolution of the output.

The sensor can run at 50 samples per second in 4X mode, so we suggest leaving it in this mode as it will offer the highest accuracy.

16x Oversampling

IIR filter

i

The IIR filter is another internal sensor for the BMP390 pressure sensor. It is a Infinite impulse response filter used to enhance pressure measurement accuracy by reducing noise. It's primarily for smoothing out rapid pressure changes.

We suggest not setting this too high as it will cause delay to changes in altitude if set very high.

COEFF 7

Pressure filter

i

This filter is a software Kalman filter that runs on the altimeters processor.

The Kalman filter uses a prediction step based on a system model and then a correction step using new measurements to refine its estimate, it creates accurate most certain results from data with noise in it.

Kalman 2 (default)

Lockout change

i

This is how we detect a lockout. If the pressure changes by this much in a single sample downwards (pressure increase, lower altitude) then it's likely to be a false reading. Multiply the setting by 32 to get the speed in meters per second that it will trigger at.

0.5 meters

Sync sensors

i

The filters on the pressure sensor can cause it to lag very slightly behind the Accelerometer and Gyroscope data. The Sync sensors option detects how far out of sync these sensors are. It then corrects the Acceleration and Gyroscope readings to match the pressure sensor.

ENABLED (31 samples / 309.00ms)

Orientation

i

This is the orientation you intend to install the Altimeter in your rocket. It's needed to ensure completly accurate angles and orientation charts and reports. Check out the Manual for more information on this.

Upwards (text up)

IMU filter

i

The IMU filter, or fusion filter takes the data from each axis of the Gyroscope and Accelerometer to calculate the Pitch, Roll, Yaw and tilt angle from vertical. These filters can build up some discrepency over time so it's important to calibrate your sensors to minimise this.

Madgwick 6-Axis

Launch ALP

i

This is prevention against accidental launch detection.

With this disabled the launch is based only on pressure and something that creates a low pressure can trigger the flight by accident. For example pulling your nose cone off can even trigger it.

With this enabled the rocket also needs to have seen 8 samples (0.25 seconds) of acceleration above this setting in the last 3 seconds as well as the pressure drop to trigger. There is a backup trigger of 1.05 seconds of altitude being above the launch detect setting too.

There are very few situations where this option would cause issues, so we suggest leaving it on.

1.4G

Launch lock

i

When enabled, the altimeter locks out recording for a set period after power on to prevent false triggering during setup.

DISABLED

Static temperature

i

A fixed temperature value used for altitude calculation when the external temperature sensor is disabled or not connected.

15.00 °C

Temp sensor

i

If an external MT1 temperature sensor is connected, this controls whether it is used for logging only or also for altitude calculations.

DISABLED

Output settings

This is a snapshot of the settings that were used for this flight.

Output 1 enabled

i

Disable or enable the output from being able to turn on or off.

DISABLED

Output 1 trigger

i

After apogee (altitude)

This method triggers when the altitude drops below the set altitude after apogee is detected.

After apogee (time)

This method triggers the defined seconds after apogee is detected.

After launch (altitude)

This method is activated if/once the altimeter exceeds the set altitude after launch.

After launch (time)

This option triggers the defined seconds after launch is detected.

After burnout (time)

This method triggers the defined seconds after burnout is detected.

After apogee (altitude)

Output 1 time on

i

This is how long the output should trigger ON state when the rules are met.

2000ms

Output 1 altitude

i

This is the altitude to trigger at if using a trigger method that works on altitude.

For example if you set this to 75m and After apogee (altitude) for the trigger then the output will turn on at 75m on descent above the launch altitude.

0 meters

Output 1 time

i

This is the time variable for output triggers that work on time.

For example if you set this to 3 seconds and After apogee (time) as the trigger then the output will turn on 3 seconds after apogee.

0 seconds

Altitude lock

i

Altitude lock is a safety feature that prevents the output from triggering if the altitude is below this level when the rules are met.

50.00 m

Tilt angle lock

i

This is another safety feature. It can be used to disable the output if the rocket has gone too far from vertical.

For example if you set the tilt angle lock to 40 degrees then the output will not fire if the rocket is more than 40 degrees from vertical. To disable set this to 0.

0.00 °

Sensor calibration

Calibration offsets used during this flight.

Gyroscope

⚠ Gyroscope has not been calibrated

X

0.000°

Y

0.000°

Z

0.000°

Accelerometer

⚠ Accelerometer has not been calibrated

X

0.000 mG

Y

0.000 mG

Z

0.000 mG

Device settings

This is a snapshot of the settings that were used for this flight.

Device TAG

i

A custom name or tag assigned to this device for easy identification.

Merc7406

Language

i

The language setting configured on the device.

en

Shutdown mode

i

Controls what happens after recording. Standard shuts down normally, Delayed keeps WiFi on for 30 seconds after landing, Stay on keeps the device powered on.

Delayed 30s

LED brightness

i

The brightness level of the LED indicators on the Mercury. Lower values save battery.

20%

WiFi TX power

i

WiFi transmit power level. Higher gives better range but uses more battery.

5 dBm (default)

Sleep mode

i

Controls whether the device enters low-power sleep when idle.

Normal (sleep when idle)

Battery monitor

i

Monitors battery voltage during the flight.

DISABLED

Cloud group

i

The cloud group / category this flight is assigned to.

1

GP6 / GP7 ports

Configuration for the GP6 and GP7 general purpose output ports. These ports can drive pyro channels, servos, or other devices.

Channel 6 mode

ON = HIGH

Ch6 min pulse (µs)

1000

Ch6 max pulse (µs)

2000

Ch6 frequency

50 Hz

Ch6 angle ON

170.00°

Ch6 angle OFF

10.00°

Ch6 on time

2.00s

Channel 7 mode

ON = HIGH

Ch7 min pulse (µs)

1000

Ch7 max pulse (µs)

2000

Ch7 frequency

50 Hz

Ch7 angle ON

170.00°

Ch7 angle OFF

10.00°

Ch7 on time

2.00s

I2C PCA9685 Servo Board

This is a snapshot of the settings that were used for this flight.

Configuration for the external I2C PCA9685 servo expansion board. This board provides up to 6 additional servo channels.

No I2C servo board was connected for this flight.

Prediction and air brakes

This is a snapshot of the settings that were used for this flight.

The Mercury can predict apogee while coasting after burnout. These settings control the prediction calculation and optional air brake system.

Dry mass

i

The total mass of the rocket after motor burnout (dry mass). This is used for the ballistic prediction of apogee altitude. Enter the mass without the motor propellant, or the mass at burnout.

0.1500 kg

Drag Cd

i

The aerodynamic drag coefficient (Cd) of the rocket. This is used with the rocket area to calculate aerodynamic drag during coast. A typical model rocket has a Cd of 0.4 to 0.8. You can find this value from OpenRocket or RockSim simulations.

0.750

Reference area

i

The cross-sectional reference area of the rocket in square meters. This is typically the area of a circle with the body tube diameter. For example a 38mm tube has an area of approximately 0.00113 m².

0.00100 m²

Gas constant

i

The specific gas constant for dry air, used in the atmospheric model for altitude and density calculations. The standard value is 287.05 J/(kg·K). You shouldn't need to change this unless you know what you're doing.

287.05 J/(kg·K)

The following settings configure the air brake system.

Air brake enabled

i

Enables or disables the active air braking system. When enabled, the Mercury will deploy air brakes via the configured servo channel to try and reach the target altitude. Firmware 2.1+ required.

OFF (default)

Servo channel

i

Which servo output channel the air brake mechanism is connected to. GP6 and GP7 are the two onboard servo headers, I2C channels are for an external servo expander board.

GP6

Deploy speed

i

The speed at which the air brakes deploy. The Mercury gradually increases the servo angle until the predicted apogee matches the target rather than going full on/off. This setting controls how quickly it ramps up to full braking.

Medium (default)

Target altitude

i

The target apogee altitude in meters. The air brake system will try to slow the rocket so it reaches this altitude.

300.00 m

Over shoot %

i

The percentage over the target altitude to aim for until within 15% of the target. This helps prevent undershooting if the prediction is slightly off early in the coast. For example, with a 1000m target and 5% early adjustment, the Mercury will aim for 1050m until it passes 850m.

5.00%

Activation altitude

i

The air brake system activates after burnout, but won't engage until the rocket has reached this percentage of the target altitude. This prevents the brakes from deploying too early when predictions may be less accurate.

20% (default)
