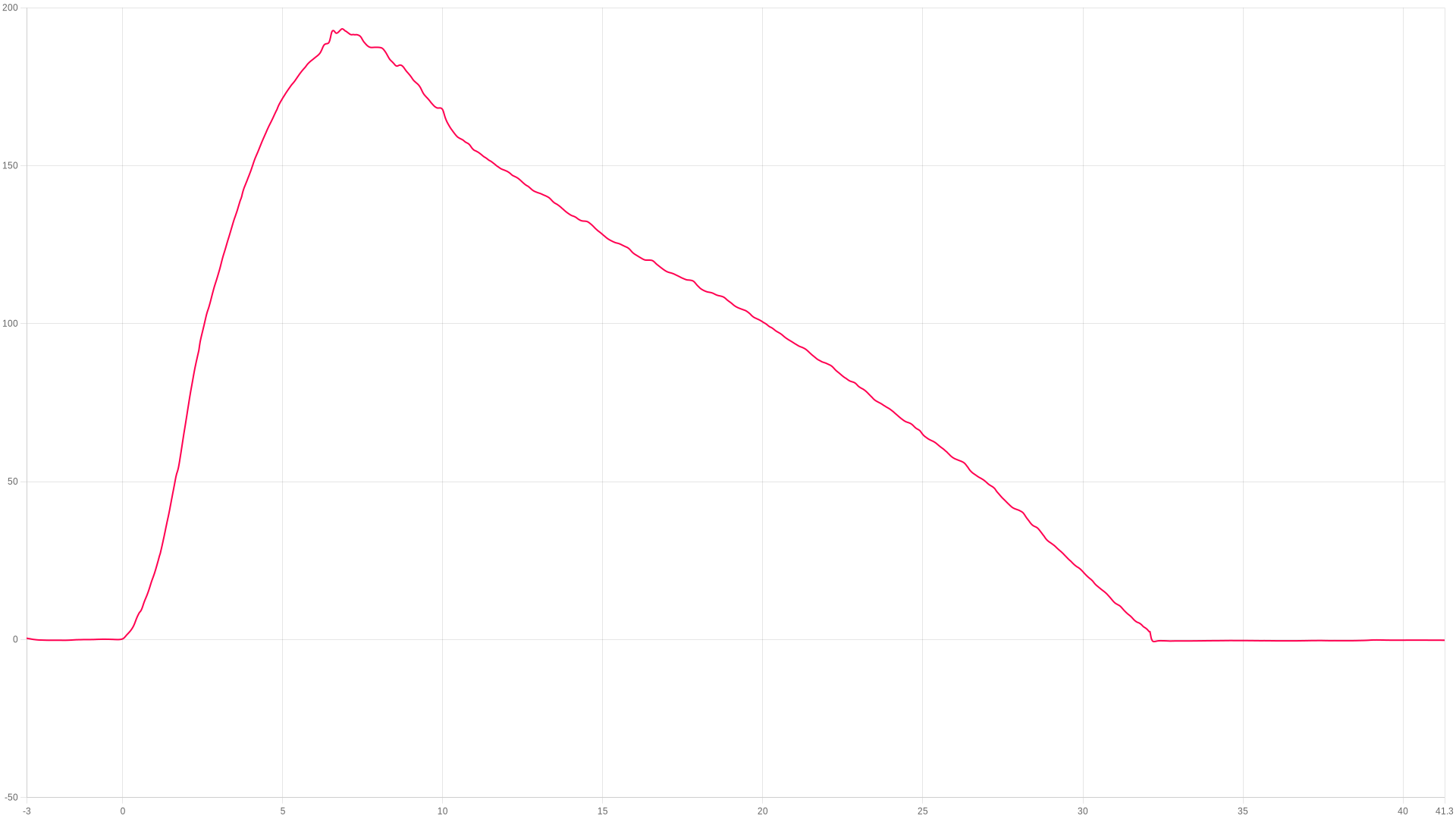

Click the legend items below the chart to toggle data sets on/off
Zooming
Click and drag, or pinch on mobile
Compare flight ?
Flight summary
Altitude
Apogee
193.32 Meters
Time to apogee
6.86 seconds
Burnout altitude
96.98 m
Max velocity altitude
69.28 m
Ejection altitude
192.02 m
Landing altitude
-0.48 m
Stability
Stability score
14.7 / 100   (Poor)
Stability breakdown
Tilt at burnout (20%)0
Tilt consistency (15%)9.2
Pitch/yaw rate (30%)0
Damping (20%)0
Thrust straightness (15%)89.1
Velocity
Max ascent
63.98 m/s
Max descent
-22.24 m/s
At burnout
47.470 m/s
Landing velocity
-9.544 m/s
Descent velocity
-7.475 m/s
Ejection velocity
7.61 m/s
Recovery
Single deploy (no dual deploy detected)
Acceleration
Max ascent
5.53 G
Max descent
6.92 G
Max during burn
5.53 G
Average ascent
0.51 G
Average burn
2.35 G
Times
Burnout (first)
2.48 seconds
Apogee
6.86 seconds
Possible ejection
6.658 seconds
Landing
32.72 seconds
Output #1 ON
0 seconds
Output #1 OFF
0 seconds
Angles
Launch pad tilt
5.56°
Max tilt to burnout
48.79°
Launch roll
5.56°
Launch pitch
-1.46°
Max spin (burn)
1503.64 dps
Avg spin (burn)
960.9 dps
General
Upload date
27-Mar at 11:55
Data samples
2233
Total recording time
45.300 s
Average samples/s
49.2
Number of lockouts
0
Recording altitude
2.77 m
Launch after startup
1h 21m 23s
Reference axis
X
Battery & temperature
Battery start
51%
Battery end
50%
Temperature start
13.87°C
Temperature end
13.57°C
MT1 launch temp
0°C
Output rules
No rules configured
Flight data animation

FLIGHT 1404

193.32 Meters

ALTITUDE
0.00m
VELOCITY
0.00m/s
ACCEL
0.00G
TILT
0.00°
PITCH
0.00°
ROLL
0.00°
YAW
0.00°
TIME
0.00s
AWAITING LAUNCH
ALT
altimetercloud.com
LAUNCH T+0.00s LANDING

BURNOUT

Motor burn complete

Note: Flight profile animation requires your altimeter to be mounted in a fixed orientation that you choose in your settings. For best results please calibrate your sensors as well.
User notes
Add this device to your account to edit
Youtube video
No video added
Add this device to your account to edit
Flight images (0)
No images added
Linked rocket
No rocket linked to this flight
Device information
Mercury V1
This flight was flown on a Mercury V1.
Hardware version
Rev 2
Software version
2.0
Last online
27-Mar at 13:19
Accelerometer
32G 3-axis
Gyroscope
2000 dgps 3-axis
Pressure sensor
Bosch BMP 390
Magnetometer
N/A
Flight motors
No motors have been added to this flight
Add this device to your account to edit
Launch site, date & time

Click anywhere on the map to mark your launch site. Switch between map and satellite view using the buttons below.

Click the map to place a marker · Drag to adjust

Lat Lng
✓ Launch location saved successfully.
✗ Could not save location — please try again.
Output rules
Rules allow the Mercury to take actions based on flight conditions. Each rule has up to 4 conditions (A-D) that must be met before the action triggers.
No rules configured
Motor match (BETA)
Very much in testing mode! We are working out how to guess which motor a flight flew on.
Brand
Motor
Score
Shape
Burn
Contrail
G300
85
94.6%
87.5%
Estes
1/4A3T
22
29.4%
56.2%
AeroTech
G339N
17
74.7%
80.6%
Cesaroni
25-E75-VM-17A
2
61.3%
76%
Estes
1/2A3T
0
78.1%
64.2%
Estes
1/2A6
0
8.3%
50%
Cesaroni
68-F240-VM-15A
0
73.1%
76%
AeroTech
H669N
0
68.7%
72.5%
AeroTech
I1299N
0
66.8%
71.5%
Motor burn
This is the accelerometer output magnitude for the period from launch to burnout. You can check this against your motors thrust data on thrustcurve.org.
General flight settings
This is a snapshot of the settings that were used for this flight. pop over to the pop over to the My devices page and then Configure settings on the device..
Forecast pressure
i
Set this to your local forecast pressure at sea level. This will offer you slightly improved accuracty for your flight, although it's not 100% essential every little helps!

Xcweather.co.uk is a decent place to grab pressures from for your location and time.
1013.2 mbar
Launch detect
i
This is the altitude above the launch pad altitude where the altimeter will trigger itself into recording / flight mode.

The altimeter keeps a constant average of the pressure while waiting for launch, it uses a simple algorithm and the pre-flight buffers to do this. The most recent 120 samples (~4 seconds) are ignored so your pre-trigger altitude won't effect the ground baseline.

For almost all uses we suggest keeping this on the 25 Meter (~82 feet) default settings. If you want to test your altimeter by throwing it in the air, or are planning a very low flight you may want to lower the setting.
25 meters
Sample ratio
i
The altimeter runs at 50Hz however you can record every sample or every X samples in order to extend the log time. For example if you set the ratio to 1 it will save 1:1 samples, or if you set it to 3 it will save 1 in 3 samples.
1:1 (50Hz)
Max samples
i
This is the maximum samples the altimeter will log per flight. When it reaches this amount it will stop and save the recording.
12000
Recording stop
i
This setting is how the altimeter decides to stop recording. You can choose either 300 or 600 samples stable or it will record until it's 10000 sample limit unless you press the BUTTON in Manual stop mode.

The samples stable method waits for the devices altitude not to change for the set number of samples. This is defined by not changing by more than +/- 1.0 meters for 98% of the samples, it's a reliable method to stop the recording after landing within 8-10 seconds (300 sample) or 16-20 seconds (600 sample).
Auto: 300 samples stable
Oversampling
i
Oversampling is a internal setting of the BMP 390 pressure sensor. It is how many samples are taken for each reading. By taking multiple samples for each pressure reading the altimeter reduces noise and increases the resolution of the output.

The sensor can run at 50 samples per second in 4X mode, so we suggest leaving it in this mode as it will offer the highest accuracy.
8x Oversampling
IIR filter
i
The IIR filter is another internal sensor for the BMP390 pressure sensor. It is a Infinite impulse response filter used to enhance pressure measurement accuracy by reducing noise. It's primarily for smoothing out rapid pressure changes.

We suggest not setting this too high as it will cause delay to changes in altitude if set very high.
COEFF 7
Pressure filter
i
This filter is a software Kalman filter that runs on the altimeters processor.

The Kalman filter uses a prediction step based on a system model and then a correction step using new measurements to refine its estimate, it creates accurate most certain results from data with noise in it.
Kalman 2 (default)
Lockout time
i
The Lockout time is how long the altimeter should stop making decisions and taking actions if it detects unusual high speed altitude changes that are unexpected.
These false readings can be caused by ejection charges (if the altimeter is in the same compartment as the motor ejection gases) or even when you transition to Mach speeds and can give false readings of altitude changes.

When these events are detected the system enters Lockout for the specified time while it stabalises. This effects things like triggering the output, or calculating other data.
750ms
Lockout change
i
This is how we detect a lockout. If the pressure changes by this much in a single sample downwards (pressure increase, lower altitude) then it's likely to be a false reading. Multiply the setting by 32 to get the speed in meters per second that it will trigger at.
1.5 meters
Sync sensors
i
The filters on the pressure sensor can cause it to lag very slightly behind the Accelerometer and Gyroscope data. The Sync sensors option detects how far out of sync these sensors are. It then corrects the Acceleration and Gyroscope readings to match the pressure sensor.
ENABLED (18 samples / 355.00ms)
Orientation
i
This is the orientation you intend to install the Altimeter in your rocket. It's needed to ensure completly accurate angles and orientation charts and reports. Check out the Manual for more information on this.
Upwards (text up)
IMU filter
i
The IMU filter, or fusion filter takes the data from each axis of the Gyroscope and Accelerometer to calculate the Pitch, Roll, Yaw and tilt angle from vertical. These filters can build up some discrepency over time so it's important to calibrate your sensors to minimise this.
Madgwick 6-Axis
Launch ALP
i
This is prevention against accidental launch detection.

With this disabled the launch is based only on pressure and something that creates a low pressure can trigger the flight by accident. For example pulling your nose cone off can even trigger it.

With this enabled the rocket also needs to have seen 8 samples (0.25 seconds) of acceleration above this setting in the last 3 seconds as well as the pressure drop to trigger. There is a backup trigger of 1.05 seconds of altitude being above the launch detect setting too.

There are very few situations where this option would cause issues, so we suggest leaving it on.
1.4G
Launch lock
i
When enabled, the altimeter locks out recording for a set period after power on to prevent false triggering during setup.
DISABLED
Static temperature
i
A fixed temperature value used for altitude calculation when the external temperature sensor is disabled or not connected.
15.00 °C
Temp sensor
i
If an external MT1 temperature sensor is connected, this controls whether it is used for logging only or also for altitude calculations.
DISABLED
Output settings
This is a snapshot of the settings that were used for this flight.
Output 1 enabled
i
Disable or enable the output from being able to turn on or off.
DISABLED
Output 1 trigger
i
After apogee (altitude)
This method triggers when the altitude drops below the set altitude after apogee is detected.
After apogee (time)
This method triggers the defined seconds after apogee is detected.
After launch (altitude)
This method is activated if/once the altimeter exceeds the set altitude after launch.
After launch (time)
This option triggers the defined seconds after launch is detected.
After burnout (time)
This method triggers the defined seconds after burnout is detected.
After apogee (altitude)
Output 1 time on
i
This is how long the output should trigger ON state when the rules are met.
2000ms
Output 1 altitude
i
This is the altitude to trigger at if using a trigger method that works on altitude.

For example if you set this to 75m and After apogee (altitude) for the trigger then the output will turn on at 75m on descent above the launch altitude.
0 meters
Output 1 time
i
This is the time variable for output triggers that work on time.

For example if you set this to 3 seconds and After apogee (time) as the trigger then the output will turn on 3 seconds after apogee.
0 seconds
Altitude lock
i
Altitude lock is a safety feature that prevents the output from triggering if the altitude is below this level when the rules are met.
50.00 m
Tilt angle lock
i
This is another safety feature. It can be used to disable the output if the rocket has gone too far from vertical.

For example if you set the tilt angle lock to 40 degrees then the output will not fire if the rocket is more than 40 degrees from vertical. To disable set this to 0.
0.00 °
Sensor calibration
Calibration offsets used during this flight.
Gyroscope
⚠ Gyroscope has not been calibrated
X
0.000°
Y
0.000°
Z
0.000°
Accelerometer
⚠ Accelerometer has not been calibrated
X
0.000 mG
Y
0.000 mG
Z
0.000 mG
Device settings
This is a snapshot of the settings that were used for this flight.
This is a snapshot of the settings that were used for this flight.
Device TAG
i
A custom name or tag assigned to this device for easy identification.
Altimeter B
Language
i
The language setting configured on the device.
en
Shutdown mode
i
Controls what happens after recording. Standard shuts down normally, Delayed keeps WiFi on for 30 seconds after landing, Stay on keeps the device powered on.
Delayed 30s
LED brightness
i
The brightness level of the LED indicators on the Mercury. Lower values save battery.
20%
WiFi TX power
i
WiFi transmit power level. Higher gives better range but uses more battery.
5 dBm (default)
Sleep mode
i
Controls whether the device enters low-power sleep when idle.
Normal (sleep when idle)
Battery monitor
i
Monitors battery voltage during the flight.
DISABLED
Cloud group
i
The cloud group / category this flight is assigned to.
GP6 / GP7 ports
Configuration for the GP6 and GP7 general purpose output ports. These ports can drive pyro channels, servos, or other devices.
Channel 6 mode
ON = HIGH
Ch6 min pulse (µs)
1000
Ch6 max pulse (µs)
2000
Ch6 frequency
50 Hz
Ch6 angle ON
170.00°
Ch6 angle OFF
10.00°
Ch6 on time
2.00s
Channel 7 mode
ON = HIGH
Ch7 min pulse (µs)
1000
Ch7 max pulse (µs)
2000
Ch7 frequency
50 Hz
Ch7 angle ON
170.00°
Ch7 angle OFF
10.00°
Ch7 on time
2.00s
I2C PCA9685 Servo Board
This is a snapshot of the settings that were used for this flight.
Configuration for the external I2C PCA9685 servo expansion board. This board provides up to 6 additional servo channels.
No I2C servo board was connected for this flight.
Prediction and air brakes
This feature was not available until version 2.10+
