Flight 2972
Cosmic Cargo (2) flight 64
Nano V1 Rev 4 · firmware 1.65Secure logSecure logThe altimeter signed this log and it passed verification on upload, so the data is unchanged since the device wrote it.Signatures use Ed25519, which no current technology can forge.
Apogee
228.05m
5.07 s after launch
Max ascent
91.33m/s
peak ascent
Max during burn
16.04G
during the burn
Landing
32.8s
touchdown 8.54 m/s
ZOOM TO
s
s
Flight summary
The flight, moment by moment
Liftoff
0 s
Launch pad tilt12.39°
Thrust calc pad tilt3.9°
Launch detected
0.983 s
Altitude30.08 m
Velocity59.88 m/s
Burnout (first)
1.65 s
Altitude81.96 m
Velocity91.290 m/s
Possible ejection
3.995 s
Altitude216.1 m
Velocity27.50 m/s
Apogee
5.06 s
Altitude228.05 Meters
Max tilt to burnout14.97°
Landing
32.79 s
Altitude0.52 m
Max descent-13.12 m/s
Stability92.5%Excellent
Launch straightness (20%)90.1
20% · Launch tilt 3.9°
Coning · full (25%)98
25% · Coning 14.1/16.8°/s
Coning · boost (25%)97.2
25% · Spin 43.7°/s
Thrust straightness (30%)85.5
30% · Thrust 97%
Rocket information
Calculated from the flight data alone
Boost acceleration55.3 m/s²
average over the burn · 5.6 g
Coast deceleration26.8 m/s²
average · gravity plus drag
Ballistic coefficient91 kg/m²
fitted to the 3.41 s coast
Apogee lost to tilt0.52 m
flown vertical ≈ 228.5 m · from the thrust-calculated tilt
Chute opening peak30.7 G
largest deceleration after ejection
Average descent rate7.48 m/s
ejection to landing · 28.79 s
Battery & temperature 83% → 82% · Temperature start 26.71 → 27.61 °C · Launch after startup 4m 34s

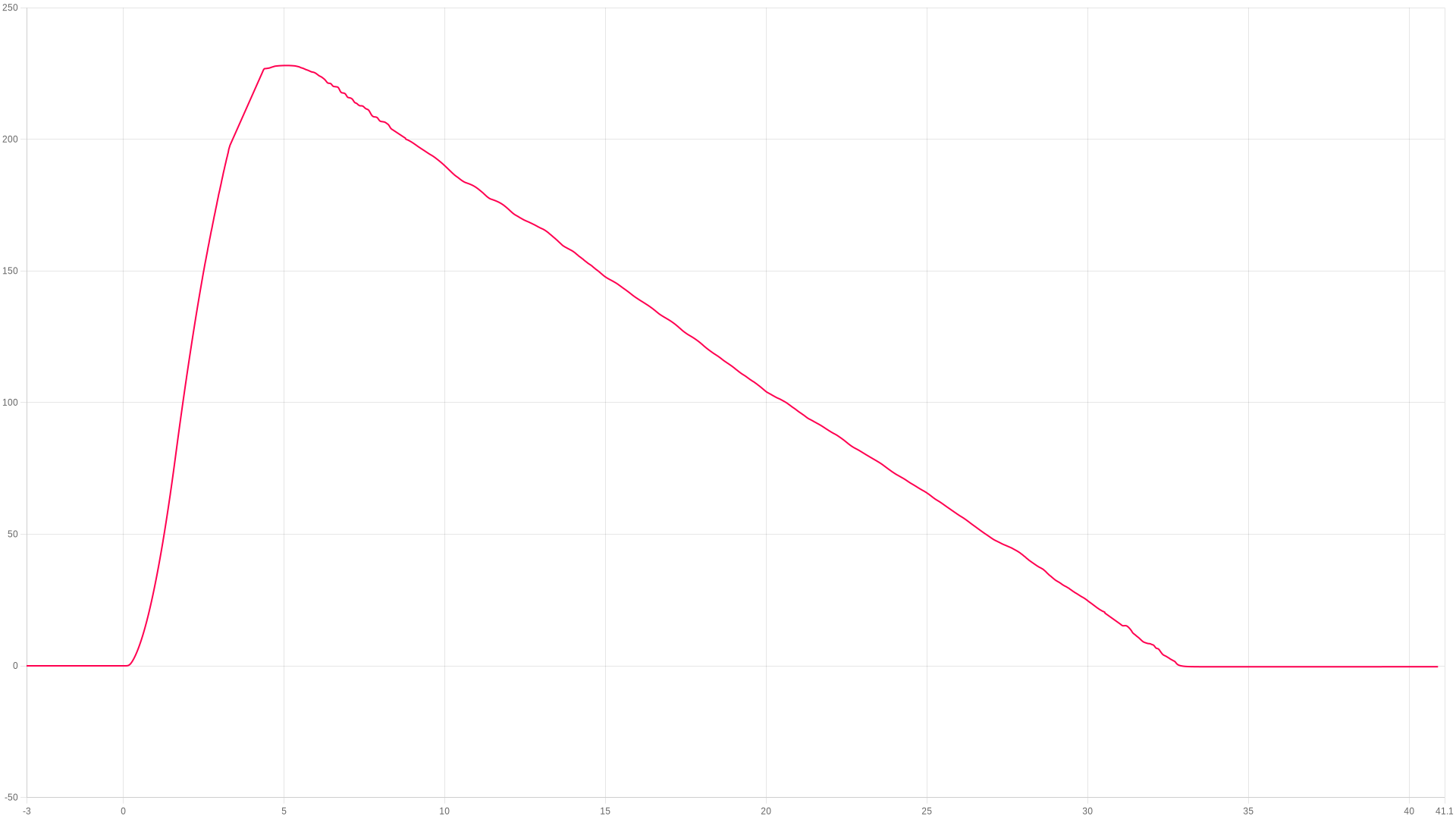

Altitude
Apogee228.05 Meters
Time to apogee5.06 s
Burnout altitude81.96 m
Max velocity altitude81.04 m
Ejection altitude216.1 m
Landing altitude0.52 m
Recording altitude-27.66 m
Velocity
Max ascent91.33 m/s
Max descent-13.12 m/s
At burnout91.290 m/s
Descent velocity-8.000 m/s
Ejection velocity27.50 m/s
Landing velocity-8.541 m/s
Acceleration
Max during burn16.04 G
Max ascent28.52 G
Max descent30.7 G
Average ascent3.03 G
Average burn5.64 G
Times
Burnout (first)1.65 s
Apogee5.06 s
Possible ejection3.995 s
Landing32.79 s
Angles
Launch pad tilt12.39°
Thrust calc pad tilt3.9°
Max tilt to burnout14.97°
Launch roll1.21°
Launch pitch12.28°
Max spin (burn)3103.31 dps
Avg spin (burn)51.91 dps
Staging
Stages detected1
Burnout (refined)1.684 s
Stage S1 burnout
flip1.654 s
drag1.679 s
sig1.809 s
Recovery
Single deploy
No dual deploy detected on this flight.
General
Upload date22/09/26-22:05:43
Data samples4203
Total recording time49.661 s
Average samples/s84.6
Number of lockouts0
Launch after startup4m 34s
Reference axisX
Battery & temperature
Battery start83%
Battery end82%
Temperature start26.71°C
Temperature end27.61°C
User notes
Motor date code 7X10. So October 7, 1993. Nice straight boost. Early streamer deployment as intended.
Add this device to your account to edit
Youtube video
Add this device to your account to edit
Flight images 0
No images added
Flight motors
1st stage · 3s delay
Burn time
1.86 s
Diameter
18.00 mm
Average thrust
4.74 N
Max thrust
14.09 N
Total weight
24.10 g
Propellant weight
10.80 g
Propellant type
black powder
Links
Impulse8.82Ns
Max thrust14N
Burn time1.86s
Impulse classC
1st stage thrustloading curve…
Motor data by ThrustCurve.org
Add this device to your account to edit
Linked rocket
🚀
Active
Cosmic Cargo
Estes Industries — Cosmic Cargo
Type
Kit build
Diameter
25.4mm
Length
457.2mm
Dry weight
56.7g
Stages
1
Fins
3
Recovery
Parachute
Body
Kraft paper
Flight mass
Liftoff mass75.5gestimated
Mass at burnout64.7gestimated
No mass is set for this flight, so Motor thrust (N) uses a mass estimated from the measured burn and the motors’ rated impulse. Set the rocket’s mass for the measured impulse and specific impulse.
Motor thrust (N) is on the chart, under Acceleration.
Other flights on this motor
4 · highest first
Linked flights
✓The altimeters aboard agree on apogee within 0%
Apogee spread228.05 – 265.3 m
Launch site, date & time
Imagery © Esri, Maxar, Earthstar Geographics
Click the map to place a marker · Drag to adjust
Canopy height from the Meta and WRI High Resolution Canopy Height Maps v2 (Meta and World Resources Institute, 2026; source imagery © 2016 Vantor), used under CC BY 4.0. Ground elevation built from Terrain Tiles (Mapzen and AWS Open Data), derived from 3DEP and GMTED courtesy of the U.S. Geological Survey, SRTM courtesy of NASA, and ETOPO1 courtesy of NOAA. Map and imagery credited on the view above.
Site nameSixty Acres Park NorthLat47.705905Lng-122.138491Ground level10.0 m · 33 ftLaunch date2026-09-22Launch time—
Taken from the NOAA GFS weather model for this place and time, so there is nothing to enter. Weather data by Open-Meteo.com (CC BY 4.0). The full weather for 48 hours either side, within 15 km, is in the tabs below and in Downloads.
Temperature19.9 °C
Sea-level pressure1017.9 hPa
QNH1017.9 hPa
Wind speed0.8 m/s
Wind directionW
Cloud coverOvercast
About sea-level pressure and QNH
Sea-level pressure is kept as given: the model’s own, or the figure entered from a forecast or report. QNH is that pressure the way an altimeter setting means it, through the standard atmosphere, and is what the adjusted apogee and the adjusted CSV use.
Model values, not observations. NOAA GFS: weather data by Open-Meteo.com (CC BY 4.0). Ensemble: NOAA GEFS.
Flight data animation
FLIGHT 2972
228.05 Meters
ALTITUDE
0.00m
VELOCITY
0.00m/s
ACCEL
0.00G
TILT
0.00°
PITCH
0.00°
ROLL
0.00°
YAW
0.00°
TIME
0.00s
AWAITING LAUNCH
ALT
altimetercloud.com
LAUNCH
T+0.00s
LANDING
BURNOUT
Motor burn complete
Note: Flight profile animation requires your altimeter to be mounted in a fixed orientation that you choose in your settings. For best results please calibrate your sensors as well.
Nano V1
This flight was flown on a Nano V1.
The hardware
Hardware versionRev 4
Software version1.65
Last online22/09/26-22:05:43
Pressure sensorBosch BMP 581
Accelerometer32G 3-axis
Gyroscope2000 dgps 3-axis
