Lil Nuke - Flight with 4 altimeters - 2
Show events
Apogee Burnout Landing Output/Rules Lockouts Velocities Ejection
Download
Adjust temp & pressure ?
Data sets
Click the legend items below the chart to toggle data sets on/off
Zooming
Click and drag, or pinch on mobile
Compare flight ?

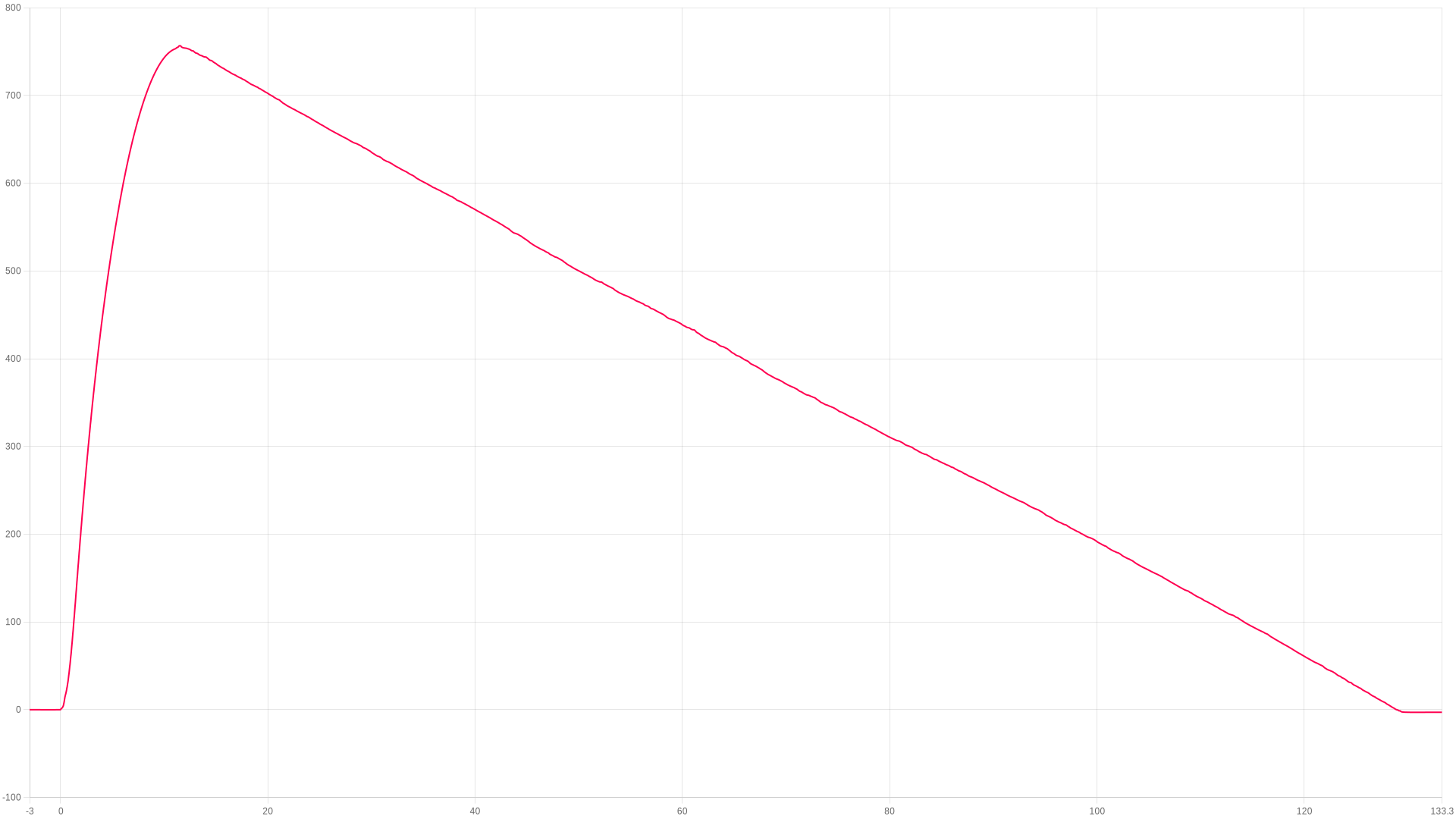

Flight summary
Altitude
Apogee
756.69 Meters
Time to apogee
11.49 seconds
Burnout altitude
117.73 m
Max velocity altitude
142.75 m
Ejection altitude
208.57 m
Landing altitude
-1.66 m
Stability
Stability score
85.3 / 100   (Excellent)
Launch straightness (20%)97.4
Coning · full (25%)93.9
Coning · boost (25%)77.8
Thrust straightness (30%)76.4
Launch tilt 1° · Coning 25.4/53.3°/s · Spin 444.5°/s · Thrust 94.9%
About this score
Worked out from the flight log between liftoff and 80% of apogee, independent of the angle the altimeter was mounted at in the airframe.
Launch straightness (20%) – how close to vertical it left the rod.
Coning · full (25%) and Coning · boost (25%) – how much the nose swung off the rocket's own axis. The main factor.
Thrust straightness (30%) – how cleanly the motor pushed along the body.
Spin about the rocket's own axis is not counted against it — a fast, straight spin is stable. The line under the bars shows the raw measurements.
Velocity
Max ascent
155.11 m/s
Max descent
-10.35 m/s
At burnout
146.410 m/s
Landing velocity
-7.032 m/s
Descent velocity
-6.432 m/s
Ejection velocity
132.02 m/s
Recovery
Single deploy (no dual deploy detected)
Acceleration
Max ascent
31.08 G
Max descent
43.02 G
Max during burn
16.85 G
Average ascent
1.2 G
Average burn
11.73 G
Times
Burnout (first)
1.38 seconds
Apogee
11.49 seconds
Possible ejection
1.989 seconds
Landing
129.3 seconds
Output #1 ON
0 seconds
Output #1 OFF
0 seconds
Angles
Launch pad tilt
1.25°
Thrust calc pad tilt
Max tilt to burnout
25.78°
Launch roll
-1.10°
Launch pitch
-0.55°
Max spin (burn)
3004.37 dps
Avg spin (burn)
340.71 dps
General
Upload date
14-Jun at 15:01
Data samples
12572
Total recording time
154.900 s
Average samples/s
81.1
Number of lockouts
0
Recording altitude
41.04 m
Launch after startup
7m 9s
Reference axis
X
Battery & temperature
Battery start
62%
Battery end
42%
Temperature start
26.38°C
Temperature end
27.17°C
MT1 launch temp
0°C
Output rules
No rules configured
Flight data animation

FLIGHT 1785

756.69 Meters

ALTITUDE
0.00m
VELOCITY
0.00m/s
ACCEL
0.00G
TILT
0.00°
PITCH
0.00°
ROLL
0.00°
YAW
0.00°
TIME
0.00s
AWAITING LAUNCH
ALT
altimetercloud.com
LAUNCH T+0.00s LANDING

BURNOUT

Motor burn complete

Note: Flight profile animation requires your altimeter to be mounted in a fixed orientation that you choose in your settings. For best results please calibrate your sensors as well.
User notes
A test of 2x Mercury and 2x Nano altimeters in a Lil Nuke with a G80 Aerotech motors.
Add this device to your account to edit
Youtube video
No video added
Add this device to your account to edit
Flight images (0)
No images added
Linked rocket
✅ Active
1
My Lil Nuke #1
LOC Precision — Lil' Nuke
✈️ 7 flights linked
Type
Kit build
Diameter
57.4mm
Length
749.3mm
Dry weight
368.5g
Mod
Modified
Stages
1
Fins
3
Recovery
Parachute
Chute
61cm
Body
Loc paper tube
Sim data from sim files
MotorAltVelAccelApogeeSource
Estes A8-3135.3 m64.8 m/s29.6 G4.5 sRockSim (estes_viking.rkt)
Estes B4-4282.9 m105.3 m/s30.0 G6.1 sRockSim (estes_viking.rkt)
Estes B6-4288.1 m116.9 m/s31.0 G5.9 sRockSim (estes_viking.rkt)
Estes C6-5475.1 m171.4 m/s34.4 G7.5 sRockSim (estes_viking.rkt)
Estes C6-7483.1 m171.4 m/s34.4 G8.1 sRockSim (estes_viking.rkt)
Device information
Mercury V1
This flight was flown on a Mercury V1.
Hardware version
Rev 3
Software version
2.40
Last online
14-Jun at 15:01
Accelerometer
32G 3-axis
Gyroscope
2000 dgps 3-axis
Pressure sensor
Bosch BMP 581
Magnetometer
N/A
Flight motors
1st Stage
1x
AeroTech
G80T-10
Add this device to your account to edit
Motor burn
The dashed line is the combined thrust curve for your motors (data from thrustcurve.org), scaled so its peak matches the recorded acceleration maximum — the shape is meaningful, the absolute level is not (your rocket's weight is unknown).
Launch site, date & time

Click anywhere on the map to mark your launch site. Switch between map and satellite view using the buttons below.

Click the map to place a marker · Drag to adjust

Lat Lng
✓ Launch location saved successfully.
✗ Could not save location — please try again.
Output rules
Rules allow the Mercury to take actions based on flight conditions. Each rule has up to 4 conditions (A-D) that must be met before the action triggers.
Rule 1
After launch onlyANY condition (OR)Active during lockout
ACTION:OUTPUT #1
Conditions
AData 300>0
BHighest Gyro axis (dps)>0
CAcc magnitude (G)>0
DAcc magnitude (G)>0
Did not trigger
Rule 2
After launch onlyANY condition (OR)Active during lockout
ACTION:Action 6000000
Conditions
AData 250>0
BAltitude above pad (m)>0
CAltitude above pad (m)>0
DAltitude above pad (m)>0
Did not trigger
Rule 3
After launch onlyANY condition (OR)Active during lockout
ACTION:OUTPUT #1
Conditions
AAltitude above pad (m)>0
BAltitude above pad (m)>0
CAltitude above pad (m)>0
DAltitude above pad (m)>0
Did not trigger
Rule 4
After launch onlyANY condition (OR)Active during lockout
ACTION:OUTPUT #1
Conditions
AAltitude above pad (m)>0
BAltitude above pad (m)>0
CAltitude above pad (m)>0
DAltitude above pad (m)>0
Did not trigger
Rule 5
After launch onlyANY condition (OR)Active during lockout
ACTION:OUTPUT #1
Conditions
AAltitude above pad (m)>0
BAltitude above pad (m)>0
CAltitude above pad (m)>0
DAltitude above pad (m)>0
Did not trigger
Rule 6
After launch onlyANY condition (OR)Active during lockout
ACTION:OUTPUT #1
Conditions
AAltitude above pad (m)>0
BAltitude above pad (m)>0
CAltitude above pad (m)>0
DAltitude above pad (m)>0
Did not trigger
Motor match (BETA)
Very much in testing mode! We are working out how to guess which motor a flight flew on.
Brand
Motor
Score
Shape
Burn
AeroTech
J615ST
142
93.1%
97.7%
AeroTech
H195NBT
110
82.1%
96.8%
Cesaroni
G125-RL
104
84.5%
94.3%
AeroTech
I600R
104
82.8%
91%
AeroTech
J825R
104
84.7%
94.6%
Cesaroni
G118-BS
100
83.5%
95.8%
Cesaroni
H163-WT
100
81.6%
95.4%
Cesaroni
G83-BS
99
83.9%
94.2%
Cesaroni
H133-BS
99
85.8%
94.1%
Cesaroni
H255-BS
99
85.8%
91.2%
Flight comparison
Comparing against 3 other flights with the same motor configuration.
Highest apogee756.69 m 3rd of 4
The maximum altitude reached above the launch point.
you
best
Best stability85.3 /100 4th of 4
How straight it flew: launch, coning and thrust straightness combined. 100 is perfect.
you
best
Fastest velocity155.11 m/s 4th of 4
Peak ascent velocity recorded during the flight.
you
best
Best avg burn G11.73 G 2nd of 4
Average acceleration during the motor burn, in G.
you
best
Longest flight154.9 s 2nd of 4
Total recording time from launch to landing.
you
best
Lowest spin340.71 dps 2nd of 4
Average spin rate during the burn.
you
best
Coldest flight26.38 C 3rd of 4
Board temperature at launch.
you
best
🌲 Is it in a tree?41.04 m 3rd of 4
Just for fun: whichever flight came down closest to 8 m above the launch point (roughly tree height) is the one most likely stuck up a tree.
8 m
you
best
General flight settings
This is a snapshot of the settings that were used for this flight. pop over to the pop over to the My devices page and then Configure settings on the device..
Forecast pressure
i
Set this to your local forecast pressure at sea level. This will offer you slightly improved accuracty for your flight, although it's not 100% essential every little helps!

Xcweather.co.uk is a decent place to grab pressures from for your location and time.
1013.2 mbar
Launch detect
i
This is the altitude above the launch pad altitude where the altimeter will trigger itself into recording / flight mode.

The altimeter keeps a constant average of the pressure while waiting for launch, it uses a simple algorithm and the pre-flight buffers to do this. The most recent 120 samples (~4 seconds) are ignored so your pre-trigger altitude won't effect the ground baseline.

For almost all uses we suggest keeping this on the 25 Meter (~82 feet) default settings. If you want to test your altimeter by throwing it in the air, or are planning a very low flight you may want to lower the setting.
25 meters
Sample ratio
i
The altimeter runs at 50Hz however you can record every sample or every X samples in order to extend the log time. For example if you set the ratio to 1 it will save 1:1 samples, or if you set it to 3 it will save 1 in 3 samples.
1:
Max samples
i
This is the maximum samples the altimeter will log per flight. When it reaches this amount it will stop and save the recording.
18000
Recording stop
i
This setting is how the altimeter decides to stop recording. You can choose either 450 (~9s) or 900 (~18s) samples stable or it will record until the max samples limit unless you press the BUTTON in Manual stop mode.

The samples stable method waits for the devices altitude not to change for the set number of samples. This is defined by not changing by more than +/- 1.0 meters for 98% of the samples, it's a reliable method to stop the recording after landing within 8-10 seconds (300 sample) or 16-20 seconds (600 sample).
Auto: 450 samples stable (~9s)
Oversampling
i
Oversampling is a internal setting of the BMP 390 pressure sensor. It is how many samples are taken for each reading. By taking multiple samples for each pressure reading the altimeter reduces noise and increases the resolution of the output.

The sensor can run at 50 samples per second in 4X mode, so we suggest leaving it in this mode as it will offer the highest accuracy.
16x Oversampling
IIR filter
i
The IIR filter is another internal sensor for the BMP390 pressure sensor. It is a Infinite impulse response filter used to enhance pressure measurement accuracy by reducing noise. It's primarily for smoothing out rapid pressure changes.

We suggest not setting this too high as it will cause delay to changes in altitude if set very high.
COEFF 7
Pressure filter
i
This filter is a software Kalman filter that runs on the altimeters processor.

The Kalman filter uses a prediction step based on a system model and then a correction step using new measurements to refine its estimate, it creates accurate most certain results from data with noise in it.
Kalman 2 (default)
Lockout change
i
This is how we detect a lockout. If the pressure changes by this much in a single sample downwards (pressure increase, lower altitude) then it's likely to be a false reading. Multiply the setting by 32 to get the speed in meters per second that it will trigger at.
0.5 meters
Sync sensors
i
The filters on the pressure sensor can cause it to lag very slightly behind the Accelerometer and Gyroscope data. The Sync sensors option detects how far out of sync these sensors are. It then corrects the Acceleration and Gyroscope readings to match the pressure sensor.
ENABLED (13 samples / 71.00ms)
Orientation
i
This is the orientation you intend to install the Altimeter in your rocket. It's needed to ensure completly accurate angles and orientation charts and reports. Check out the Manual for more information on this.
Upwards (text up)
IMU filter
i
The IMU filter, or fusion filter takes the data from each axis of the Gyroscope and Accelerometer to calculate the Pitch, Roll, Yaw and tilt angle from vertical. These filters can build up some discrepency over time so it's important to calibrate your sensors to minimise this.
Madgwick 6-Axis
Launch ALP
i
This is prevention against accidental launch detection.

With this disabled the launch is based only on pressure and something that creates a low pressure can trigger the flight by accident. For example pulling your nose cone off can even trigger it.

With this enabled the rocket also needs to have seen 8 samples (0.25 seconds) of acceleration above this setting in the last 3 seconds as well as the pressure drop to trigger. There is a backup trigger of 1.05 seconds of altitude being above the launch detect setting too.

There are very few situations where this option would cause issues, so we suggest leaving it on.
1.4G
Launch lock
i
When enabled, the altimeter locks out recording for a set period after power on to prevent false triggering during setup.
DISABLED
Static temperature
i
A fixed temperature value used for altitude calculation when the external temperature sensor is disabled or not connected.
15.00 °C
Temp sensor
i
If an external MT1 temperature sensor is connected, this controls whether it is used for logging only or also for altitude calculations.
DISABLED
Output settings
This is a snapshot of the settings that were used for this flight.
Output 1 enabled
i
Disable or enable the output from being able to turn on or off.
DISABLED
Output 1 trigger
i
After apogee (altitude)
This method triggers when the altitude drops below the set altitude after apogee is detected.
After apogee (time)
This method triggers the defined seconds after apogee is detected.
After launch (altitude)
This method is activated if/once the altimeter exceeds the set altitude after launch.
After launch (time)
This option triggers the defined seconds after launch is detected.
After burnout (time)
This method triggers the defined seconds after burnout is detected.
After apogee (altitude)
Output 1 time on
i
This is how long the output should trigger ON state when the rules are met.
2000ms
Output 1 altitude
i
This is the altitude to trigger at if using a trigger method that works on altitude.

For example if you set this to 75m and After apogee (altitude) for the trigger then the output will turn on at 75m on descent above the launch altitude.
0 meters
Output 1 time
i
This is the time variable for output triggers that work on time.

For example if you set this to 3 seconds and After apogee (time) as the trigger then the output will turn on 3 seconds after apogee.
0 seconds
Altitude lock
i
Altitude lock is a safety feature that prevents the output from triggering if the altitude is below this level when the rules are met.
0.00 m
Tilt angle lock
i
This is another safety feature. It can be used to disable the output if the rocket has gone too far from vertical.

For example if you set the tilt angle lock to 40 degrees then the output will not fire if the rocket is more than 40 degrees from vertical. To disable set this to 0.
0.00 °
Sensor calibration
Calibration offsets used during this flight.
Gyroscope
X
-0.220°
Y
-0.650°
Z
1.430°
Accelerometer
X
11.170 mG
Y
3.330 mG
Z
27.110 mG
Device settings
This is a snapshot of the settings that were used for this flight.
This is a snapshot of the settings that were used for this flight.
Device TAG
i
A custom name or tag assigned to this device for easy identification.
TEST-LEFT-3
Language
i
The language setting configured on the device.
en
Shutdown mode
i
Controls what happens after recording. Standard shuts down normally, Delayed keeps WiFi on for 30 seconds after landing, Stay on keeps the device powered on.
Delayed 30s
LED brightness
i
The brightness level of the LED indicators on the Mercury. Lower values save battery.
20%
WiFi TX power
i
WiFi transmit power level. Higher gives better range but uses more battery.
2 dBm (low)
Sleep mode
i
Controls whether the device enters low-power sleep when idle.
Normal (sleep when idle)
Battery monitor
i
Monitors battery voltage during the flight.
DISABLED
Cloud group
i
The cloud group / category this flight is assigned to.
GP6 / GP7 ports
Configuration for the GP6 and GP7 general purpose output ports. These ports can drive pyro channels, servos, or other devices.
Channel 6 mode
ON = HIGH
Ch6 min pulse (µs)
0
Ch6 max pulse (µs)
0
Ch6 frequency
0 Hz
Ch6 angle ON
0.00°
Ch6 angle OFF
0.00°
Ch6 on time
0.00s
Channel 7 mode
ON = HIGH
Ch7 min pulse (µs)
0
Ch7 max pulse (µs)
0
Ch7 frequency
0 Hz
Ch7 angle ON
0.00°
Ch7 angle OFF
0.00°
Ch7 on time
0.00s
I2C PCA9685 Servo Board
This is a snapshot of the settings that were used for this flight.
Configuration for the external I2C PCA9685 servo expansion board. This board provides up to 6 additional servo channels.
No I2C servo board was connected for this flight.
Prediction and air brakes
This is a snapshot of the settings that were used for this flight.
The Mercury can predict apogee while coasting after burnout. These settings control the prediction calculation and optional air brake system.
Dry mass
i
The total mass of the rocket after motor burnout (dry mass). This is used for the ballistic prediction of apogee altitude. Enter the mass without the motor propellant, or the mass at burnout.
$tc_not_configured
Drag Cd
i
The aerodynamic drag coefficient (Cd) of the rocket. This is used with the rocket area to calculate aerodynamic drag during coast. A typical model rocket has a Cd of 0.4 to 0.8. You can find this value from OpenRocket or RockSim simulations.
$tc_not_configured
Reference area
i
The cross-sectional reference area of the rocket in square meters. This is typically the area of a circle with the body tube diameter. For example a 38mm tube has an area of approximately 0.00113 m².
$tc_not_configured
Gas constant
i
The specific gas constant for dry air, used in the atmospheric model for altitude and density calculations. The standard value is 287.05 J/(kg·K). You shouldn't need to change this unless you know what you're doing.
$tc_not_configured
The following settings configure the air brake system.
Air brake enabled
i
Enables or disables the active air braking system. When enabled, the Mercury will deploy air brakes via the configured servo channel to try and reach the target altitude. Firmware 2.1+ required.
OFF (default)
Servo channel
i
Which servo output channel the air brake mechanism is connected to. GP6 and GP7 are the two onboard servo headers, I2C channels are for an external servo expander board.
GP6
Deploy speed
i
The speed at which the air brakes deploy. The Mercury gradually increases the servo angle until the predicted apogee matches the target rather than going full on/off. This setting controls how quickly it ramps up to full braking.
Medium (default)
Target altitude
i
The target apogee altitude in meters. The air brake system will try to slow the rocket so it reaches this altitude.
$tc_not_configured
Over shoot %
i
The percentage over the target altitude to aim for until within 15% of the target. This helps prevent undershooting if the prediction is slightly off early in the coast. For example, with a 1000m target and 5% early adjustment, the Mercury will aim for 1050m until it passes 850m.
$tc_not_configured
Activation altitude
i
The air brake system activates after burnout, but won't engage until the rocket has reached this percentage of the target altitude. This prevents the brakes from deploying too early when predictions may be less accurate.
20% (default)
